HSL-58RD-D300PCL / HSL-58SW-D300PCL / HSL-58GR-D300PCL / HSL-58BL-D300PCL

HOME > Products Information > Machine Vision Applications > Spot > HSL-PCL Series > HSL-58RD-D300PCL / HSL-58SW-D300PCL / HSL-58GR-D300PCL / HSL-58BL-D300PCL

HSL-58RD-D300PCL / HSL-58SW-D300PCL / HSL-58GR-D300PCL / HSL-58BL-D300PCL

Custom Order

Spot light with unique optical design that provides uniform, focused illumination to the target area with minimal spread even at a distance of 2m. IP67 compliant.

Add to Watch List

LED color	Red, White, Blue, Green
Peak wavelength	Red: 645 nm typ., Blue: 470 nm typ., Green: 520 nm typ.
Power consumption	2.8 W max.
Polarity & signal	1: (+), 2: no connection, 3: (-), 4: (R)
Case material	Aluminum alloy
Input current	700 mA
Operating temperature and humidity	Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20% to 85%RH (with no condensation)
Cooling method	Natural air cooling
Notes	Dedicated cable: FCB-n-HSL-SM (n = 2,5,10) Recommended power supply: PJ2, PJ, CC-PJ-0707

Product Details Dimensions (mm) Power Supplies Downloads

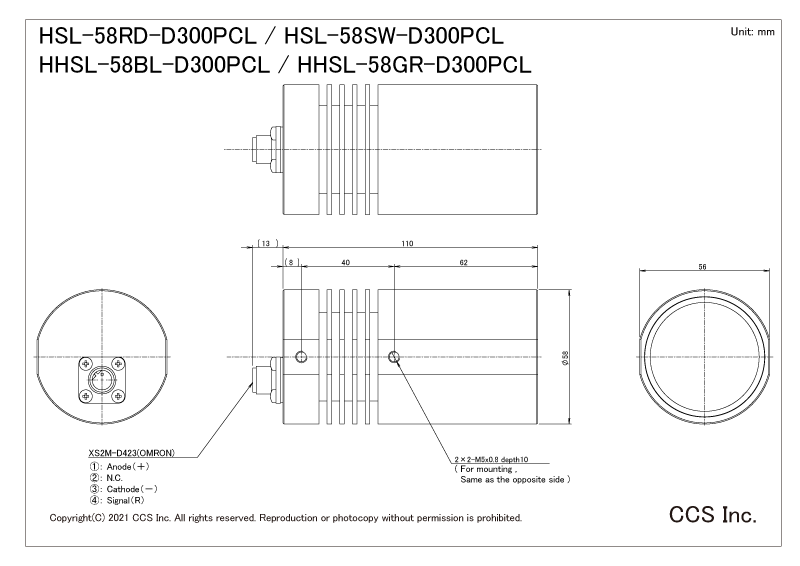

Dimensions (mm)

* Click to enlarge image.

Power Supplies
Control Unit Guide(PDF)

CC-PJ-0707
PJ-1505-2CA
PJ-1505-3CA
PJ-1505-2CD24
PJ2-1505-2CA-PE

Downloads

General Catalog	PDF Drawing
