HLV2-24VL3-385 / HLV2-24VL3-395 / HLV2-24VL3-405

Standard Product

Spot type violet LED light.
Available wavelengths: 385nm (HLV2-24VL3-385), 395nm (HLV2-24VL3-395), and 405nm (HLV2-24VL3-405)
Outer diameter 24 mm, total length 54 mm, tip diameter 28 mm.

This product is made to order. Please contact your sales representative for details.

Add to Watch List

Product Details Dimensions (mm) Cables Power Supplies Downloads

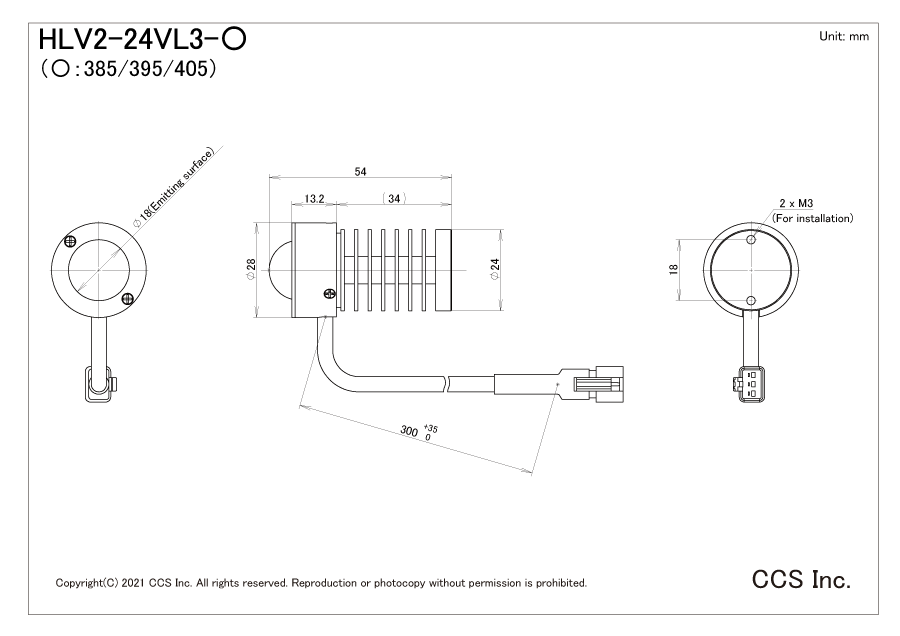

Dimensions (mm)

* Click to enlarge image.

Cables

FCB-1

Cable length: 1 m
Straight cable
FCB-2

Cable length: 2 m
Straight cable
FCB-3

Cable length: 3 m
Straight cable
FCB-5

Cable length: 5 m
Straight cable
FRCB-1

Cable length: 1 m
Robot cable
FRCB-2

Cable length: 2 m
Robot cable
FRCB-3

Cable length: 3 m
Robot cable
FRCB-5

Cable length: 5 m
Robot cable

Power Supplies
Control Unit Guide(PDF)

PD3-5024-4-PI(A)
PD3-5024-4-SI(A)
PD3-5024-4-EI(A)
PD3-10024-8-PI
PD3-10024-8-SI(A)
PD3-10024-8-EI(A)
PD3-5024-4-PT(A)
PD3-5024-4-ET(A)
PJ2-1505-2CA-PE
PJ2-3005-4CA-PE
PJ-1505-3CA
PJ-1505-2CA
PJ-1505-2CD24
PJ-1505-3CD24
CC-PJ-0707

Downloads

General Catalog	PDF Drawing	DXF Drawing	Pamphlet	Warranty & Environmental Info	3D-CAD
